Single Phase Variable Frequency Drive with Electric Motor Speed Control Package

Description:

• Inverter/Vector Duty Rating: Inverter Duty
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Base RPM: 400-4500RPM
• Shaft Type: Keyed
• Mounting Type: Foot-Mounted
• Reversible/Non-Reversible: Reversible
• IP Rating: IP55
• AC Phase: Single Phase
• Actual Rated Input Voltage: Single phase 240V
• AC Frequency Rating: 0-600Hz
• Bundle Description: AC Induction Three phase motor with Compatible VFD
• Custom Bundle: Yes
• AC Motor Type: Induction/Asynchronous
• Insulation Class: F (Max 155°C)
• Current Type: AC
• Nominal Rated Input Voltage: 240 V
• Input: Single Phase 240V
• Output: Three Phase 240V
• Type: TYPE 80 (0.75kw) / TYPE 90 (1.5kw) / TYPE 100 (2.2kw) / TYPE 112 (3.7kw)
• Motor Speed: 4 Pole (1400rpm)
• Power: 0.75kw/1hp, 1.5kw/2hp, 2.2kw/3hp, 3.7kw/5hp
• Speed control: 400-4000rpm
• Shaft size: 19mm (0.75kw) / 24mm (1.5kw) / 28mm (2.2/3.7kw)
• Light weight
• Aluminium Alloy

This single phase VFD package does not requires 3 phase power supply. It can allows you to use your normal single phase 240V power supply to controls our three phase electric motor ( Motor needs change from Star 415V configuration to Delta 240V configuration) without losing the torques. You could program the VFD to higher frequency to obtain higher speed. Its designs for many application use, such us CNC, Metal/Wood lathe, Belt grinder, Drill press, Conveyor belt and many others. If you don't understand the theory, feel free to contact us.


No electrical cable is included in this package because we don't know how long you need.

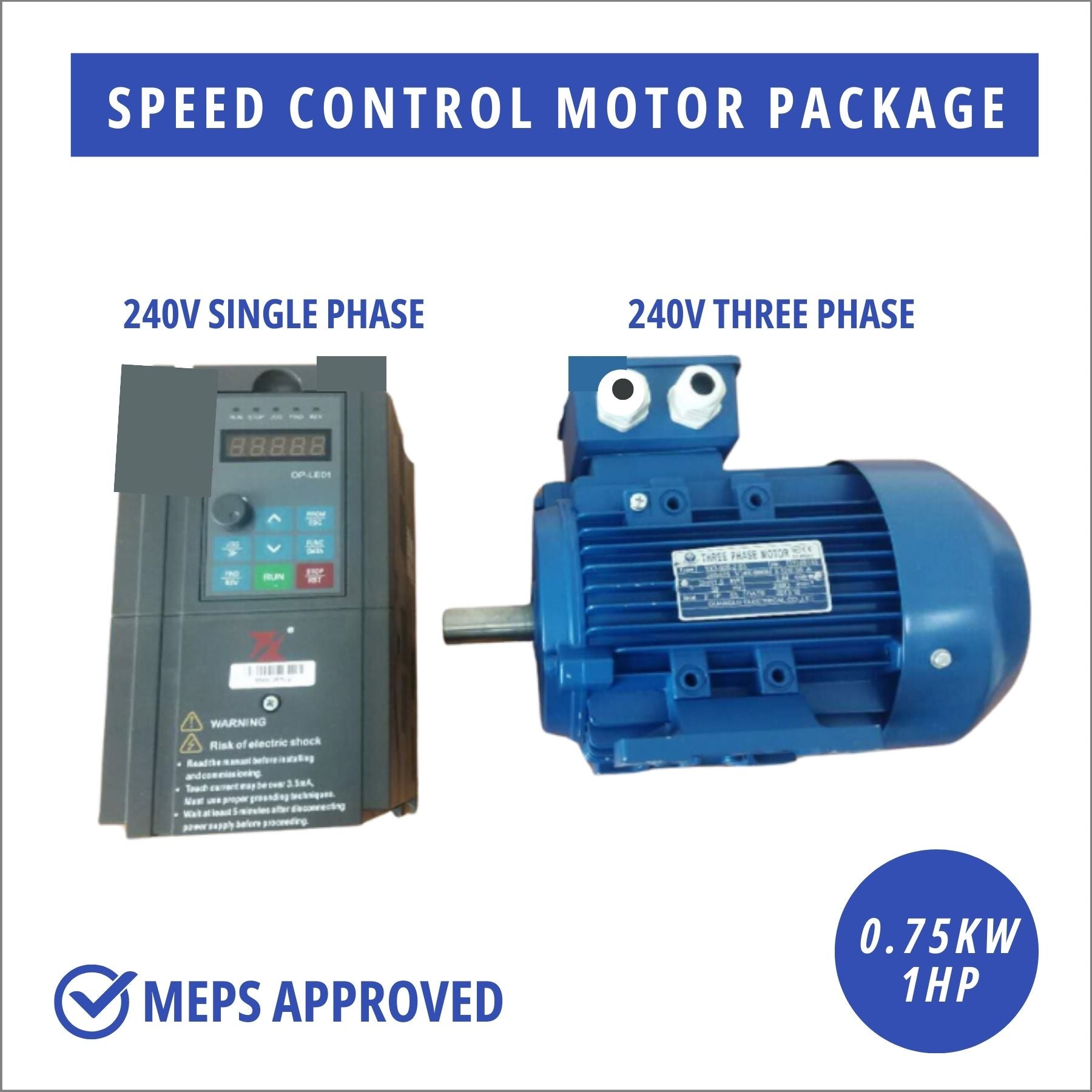

All package include one SINGLE PHASE VFD and one THREE PHASE motor
