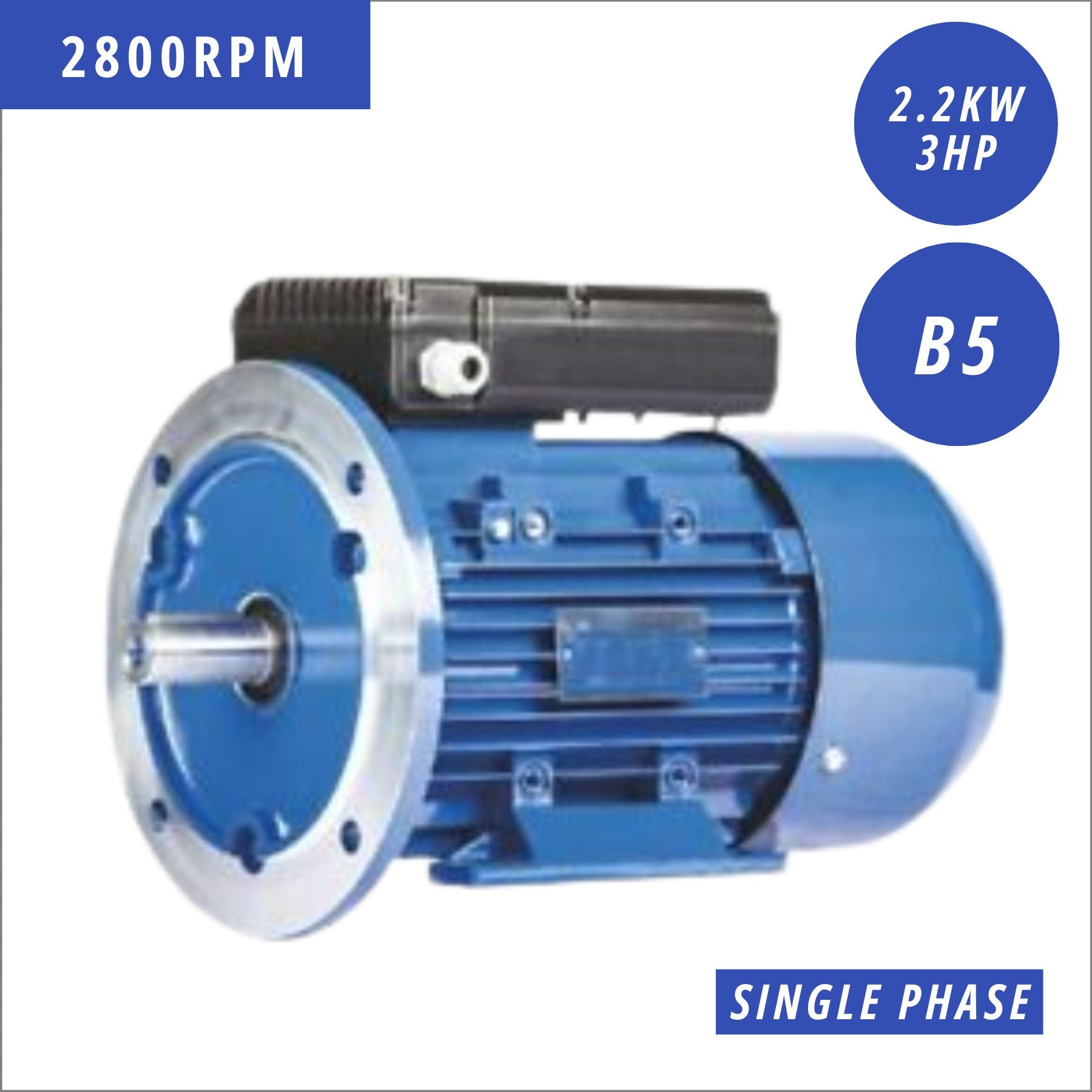

Single Phase B5 2.2kw 3HP 2800rpm Molnar Flange Mounted Motor 240v Reversible CSCR Shaft 24mm

Description:

• Full Load Amps: 13.2A
• Rated Load (HP): 3HP
• AC Frequency Rating: 50 Hz
• Base RPM: 2800RPM
• Shaft Type: Keyed
• Shaft Diameter: 24MM
• Insulation Class: F (Max 155°C)
• Current Type: AC
• Service Factor: 1.10
• Nominal Rated Input Voltage: 240V
• AC Phase: Single Phase
• Actual Rated Input Voltage: 240V
• Inverter/Vector Duty Rating: Not Inverter/Vector Duty Rated
• IEC Frame Size: 90
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Rated Load (kW): 2.2KW
• AC Motor Type: Induction/Asynchronous
• Mounting Type: Flange-Mounted, Foot-Mounted
• Reversible/Non-Reversible: Reversible
• IP Rating: IP55
• Housing Materials: Cast Aluminium
• Single phase: 240V
• Type: GMYL-2.2KW-2
• Power: 2.2KW/3HP
• Speed: 2 Pole (2800rpm)
• Maximum amperage draws: 13.7
• Shaft size: 24mm
• Light weight

*This motor is pre-mounted with a B5 Flange. Can simply to replace Molnar three phase hoist to single phase powered.
