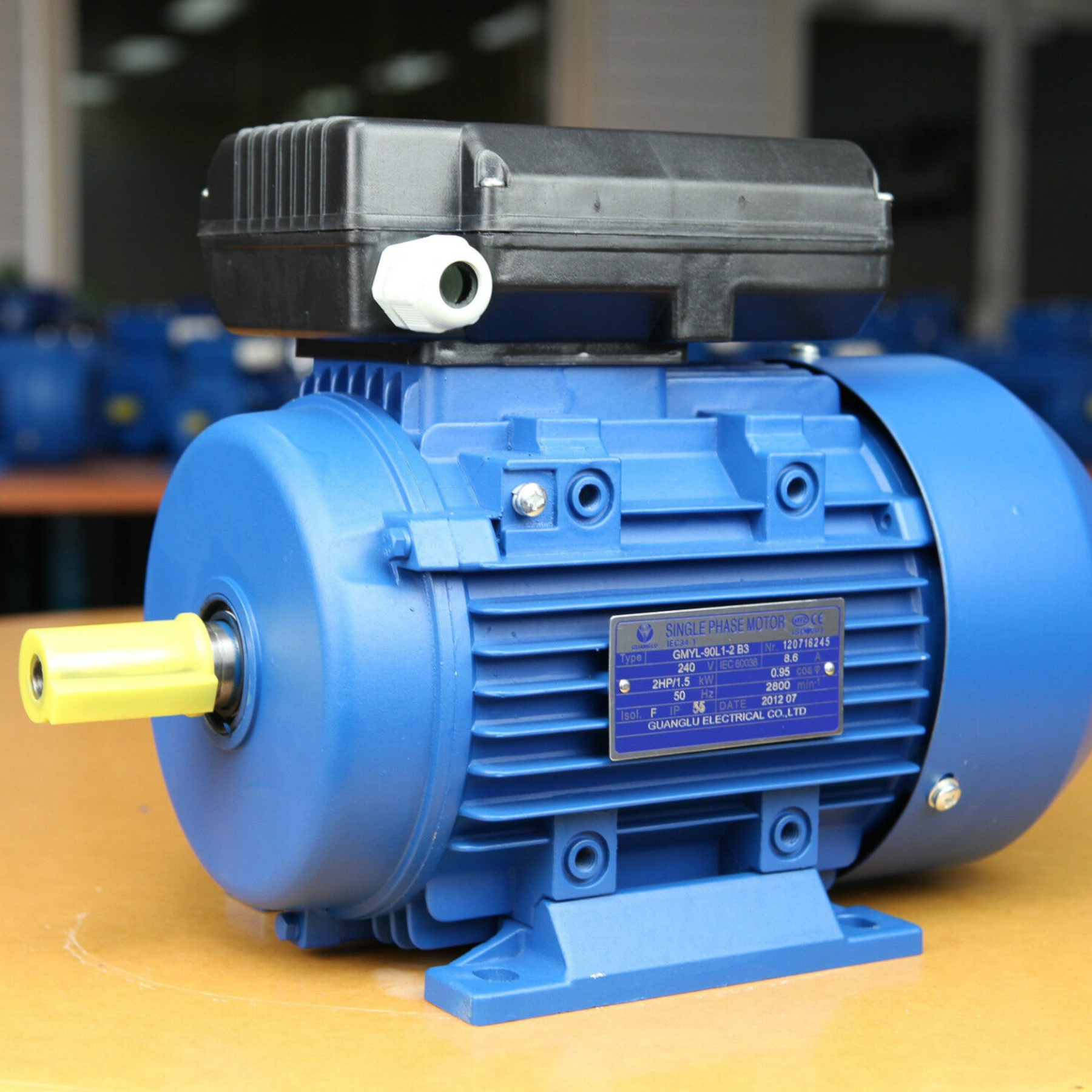

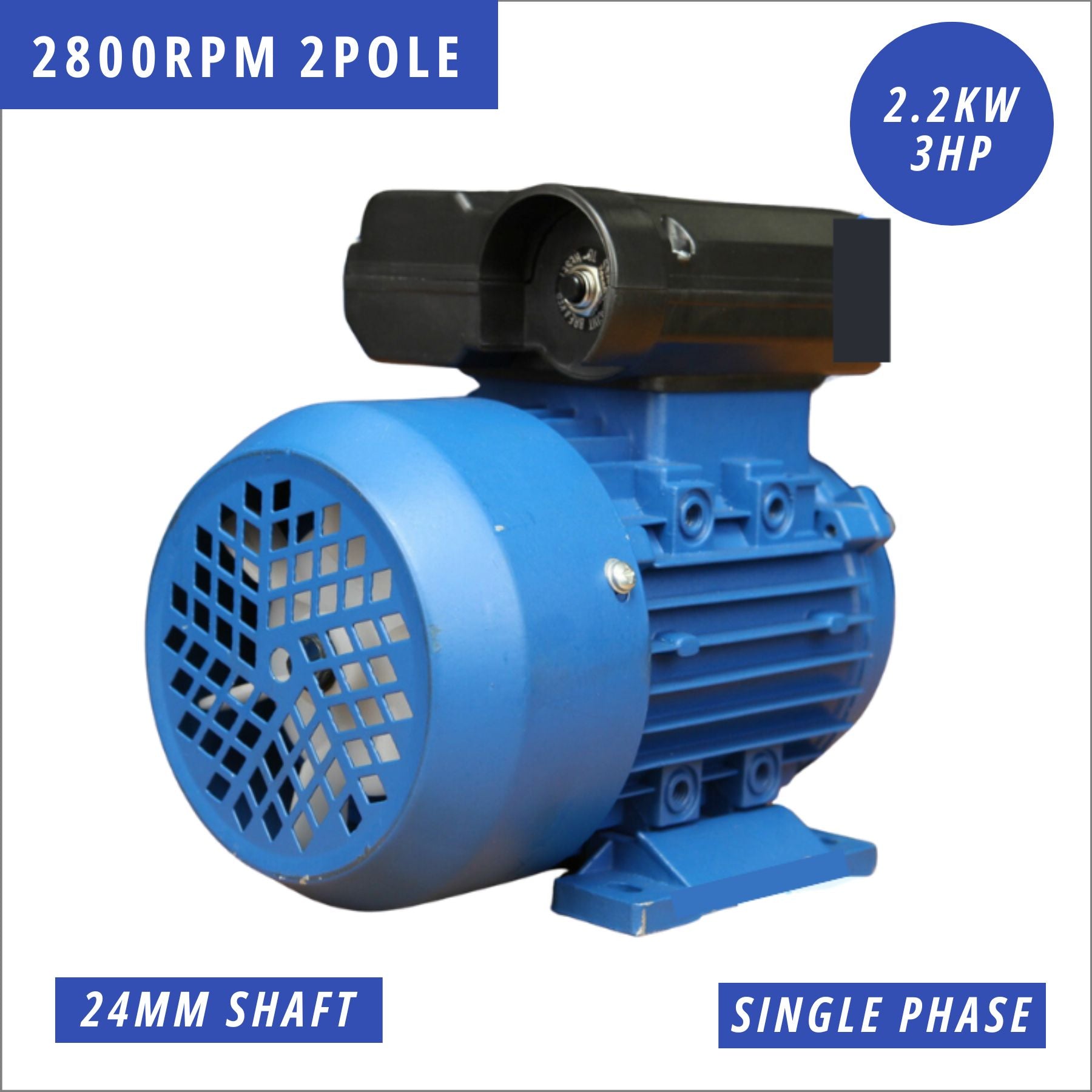

Single Phase 240v Air Compressor Saw 2.2kw 3HP 2800rpm CSCR Reversible Motor

Description:

• Inverter/Vector Duty Rating: Not Inverter/Vector Duty Rated
• IEC Frame Size: 90
• AC Frequency Rating: 50/60 Hz
• Rated Load (kW): 2.2KW

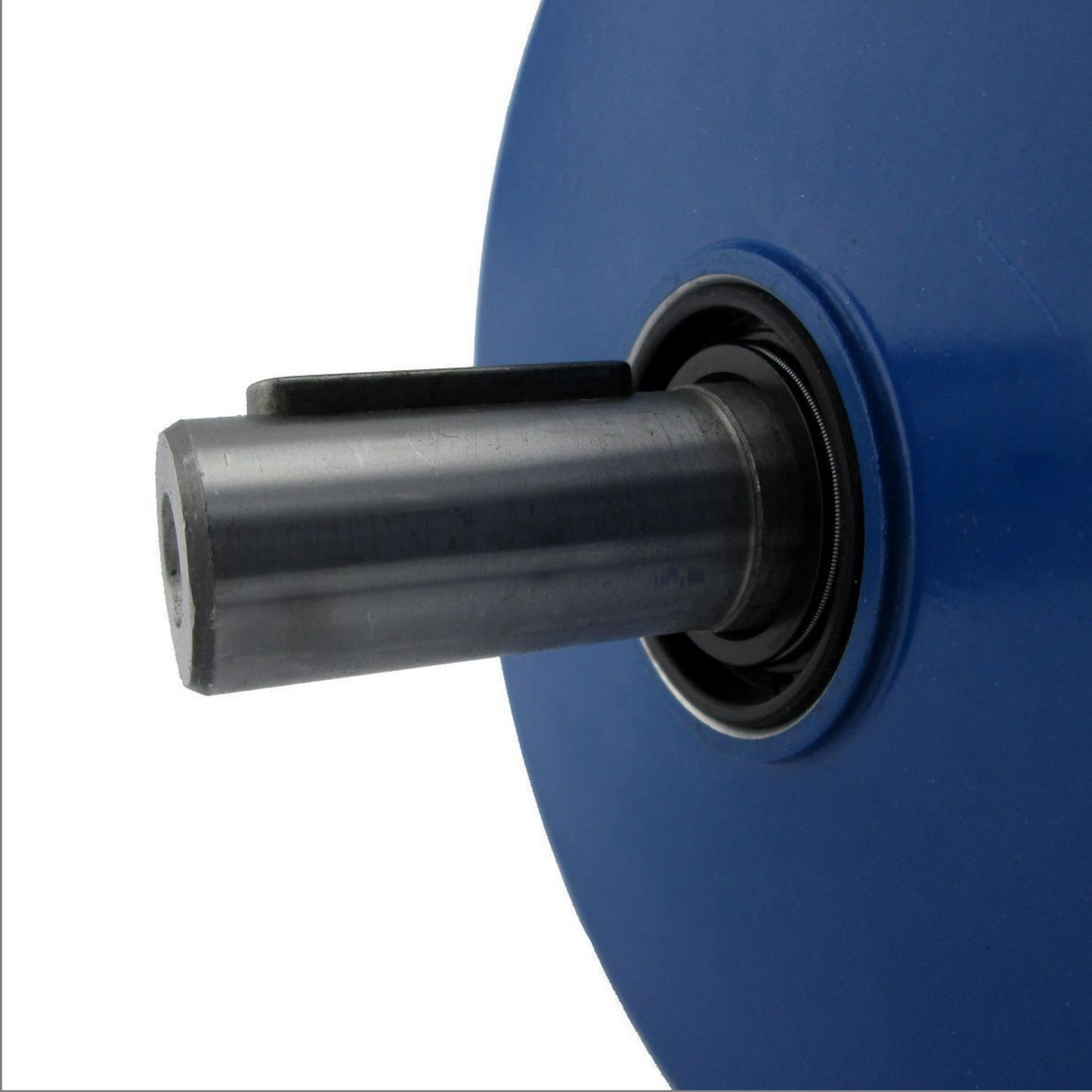

• Shaft Type: Keyed
• Shaft Diameter: 24MM
• Insulation Class: F (Max 155°C)
• Brand: CONON
• Current Type: AC
• Service Factor: 1.10
• Nominal Rated Input Voltage: 240 V
• AC Phase: Single Phase
• Actual Rated Input Voltage: 240V
• Full Load Amps: 13.2AMP
• Rated Load (HP): 3HP
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Base RPM: 2850RPM
• AC Motor Type: Induction/Asynchronous
• MPN: Does Not Apply

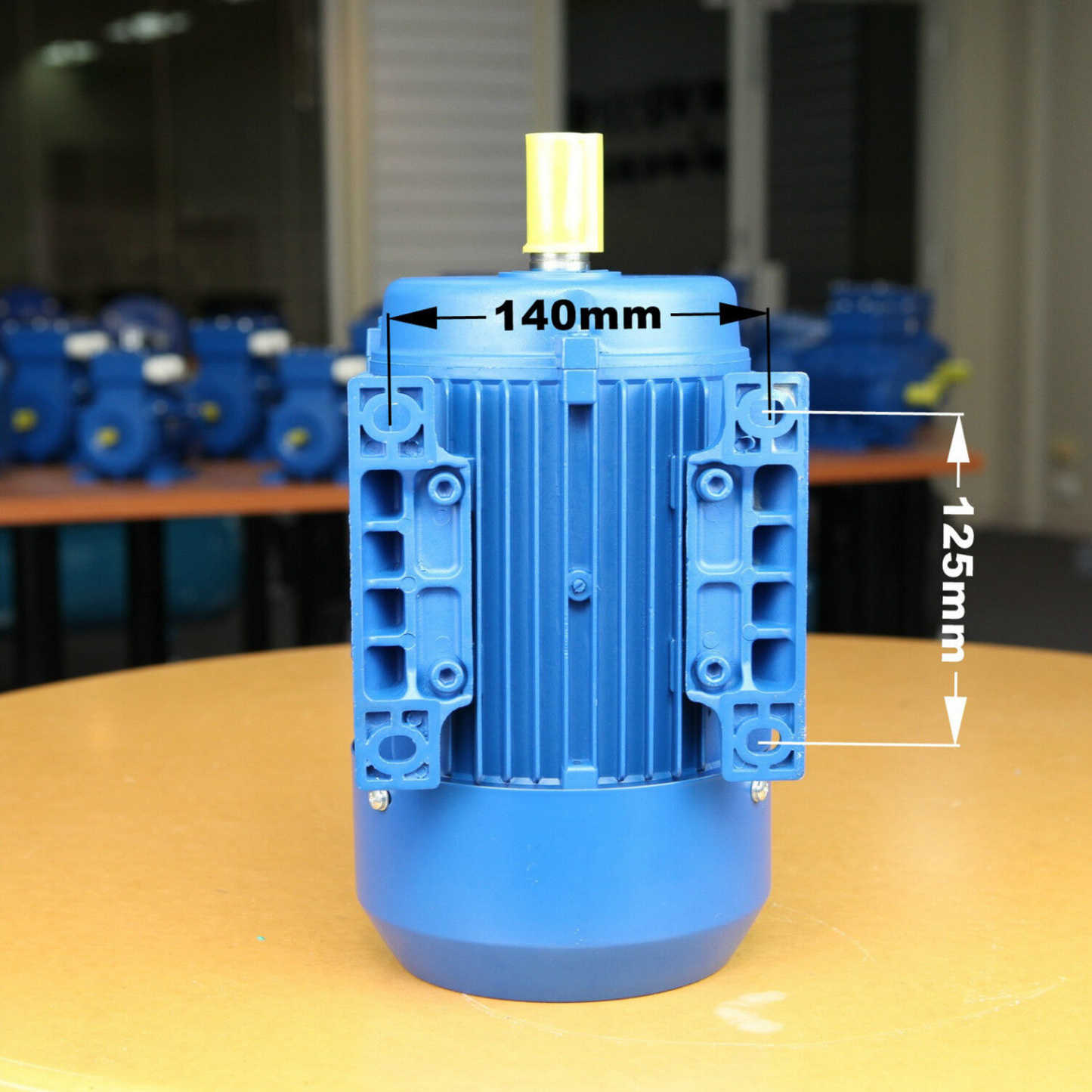

• Mounting Type: Base-Mounted, Face-Mounted, Flange-Mounted, Foot-Mounted

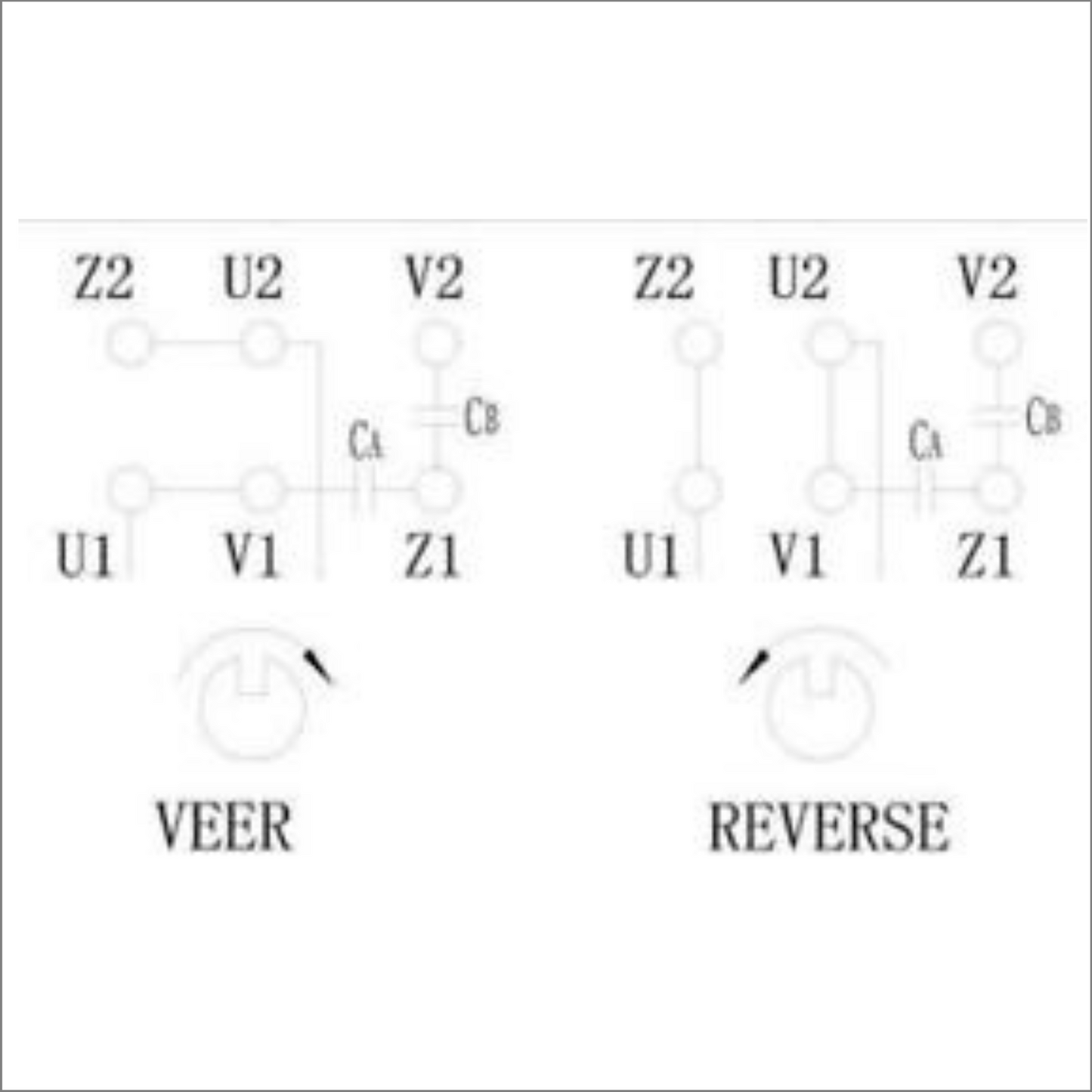

• Reversible/Non-Reversible: Reversible
• IP Rating: IP55
• Model : GMYL90L2-2
• Starting/Locked Rotor Torque: 1.6
• Power: 2.2KW/3HP
• Speed: 2 Pole (2800rpm)
• Maximum amperage draws: 13.7
• Shaft size: 24mm
• Light weight

Technical Data of GMYL Series

• Rated Power - Output(KW): 2.2
• Full load speed in revolutions per minute - Speed (r/min): 2800
• Full load current at rated voltage - (Amps) 13.7
• Exciter Voltage: 240
• Efficiency: 77%
• Power Factor: 0.95
• Direct on line staring torque ratio (LRT/RLT): 1.7
• Direct on line pull out torque ratio (BDT/RLT): 1.6
• Direct on line starting current ratio (LRA/RLA): 5.5
• Mean sound pressure level @1m on no load: 78

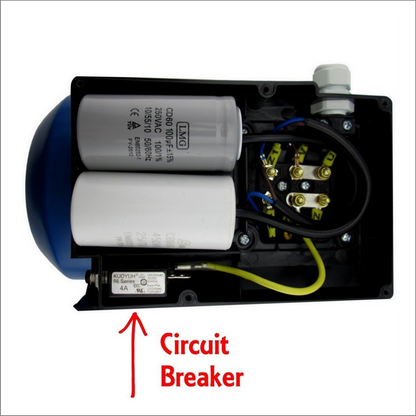

• Start Capacitor (μf/v): 300/250
• Running Capacitor (μf/v): 50/450
• Weight: 19kg
