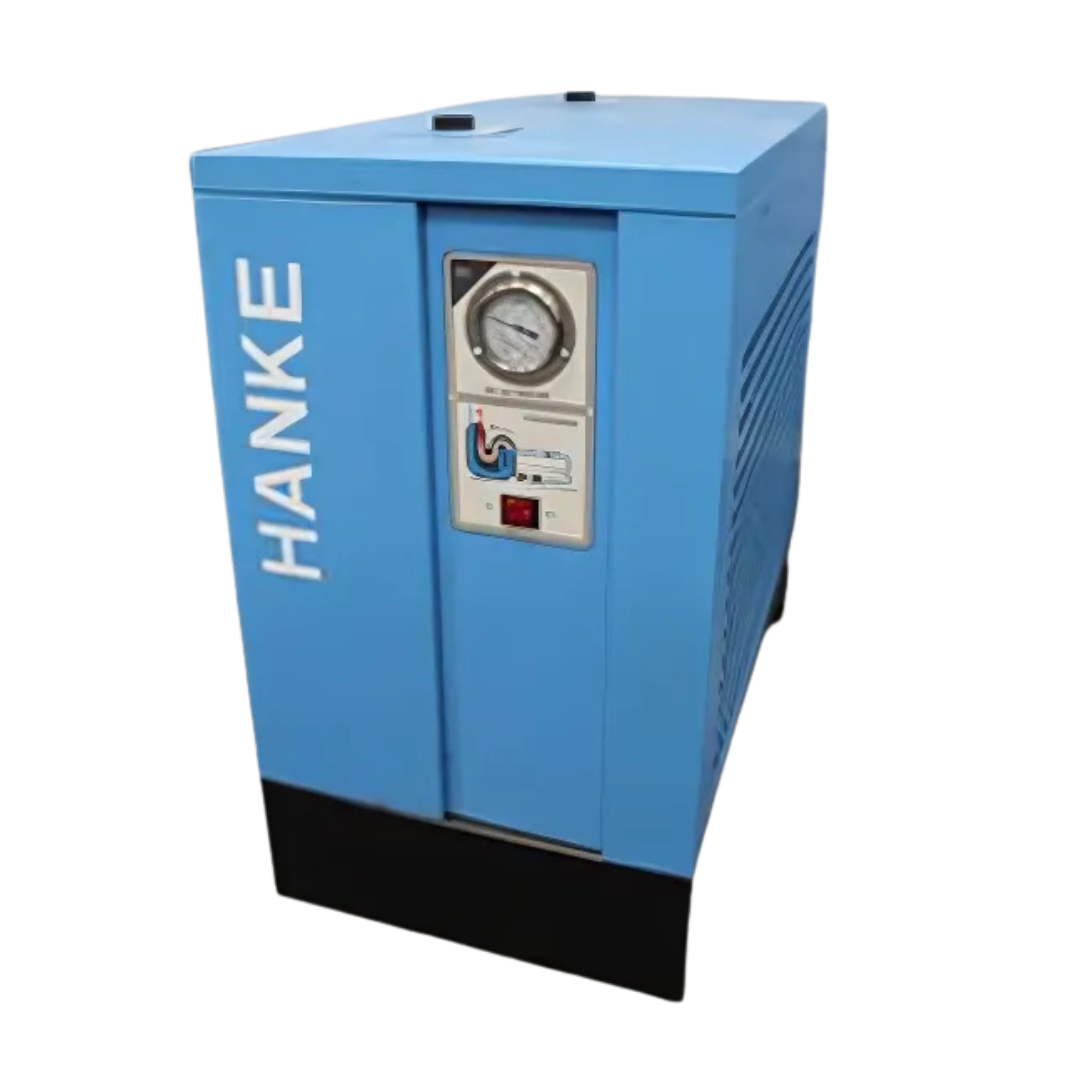

Refrigerated Air Dryer 80 CFM for Moisture Control in CNC Spray Painting & Powder Coating

Optimize your operations with the 80 CFM Refrigerated Air Dryer, built to remove moisture and ensure dry, clean air for CNC, spray painting, powder coating, and sandblasting. This air dryer features an 80 CFM capacity, providing efficient moisture filtration that protects your equipment from rust, corrosion, and damage. Designed for medium-duty industrial applications, it enhances the quality of your work by delivering consistent, moisture-free air for precise machining and flawless finishes.

Design Characteristics

• Unique three-in-one plate type heat exchanger design, compact structure, high heat transfer efficiency. Compare to traditional shell tube heat exchanger, unit heat transfer area enlarges 5 to 10 times.
• High strength aluminum alloy and stainless steel design which is small and light.
• Imported refrigerated valve, compressor is Panasonic.
• Economic auto drain.
• Sensitive and reliable instrument control components

Specification:

• Working Pressure: 1.6MPa
• Rated Capacity: 2.4 M3/min
• Refrigerant: R134a
• Max Inlet Temperature: 65°C
• Maximum Ambient Temperature: 35°C
• Pressure Dew Point: 3~10°C
• Voltage: 240V / 1Ph / 50Hz
• Dimension: 400*680*710
• Net weight: 49KG
