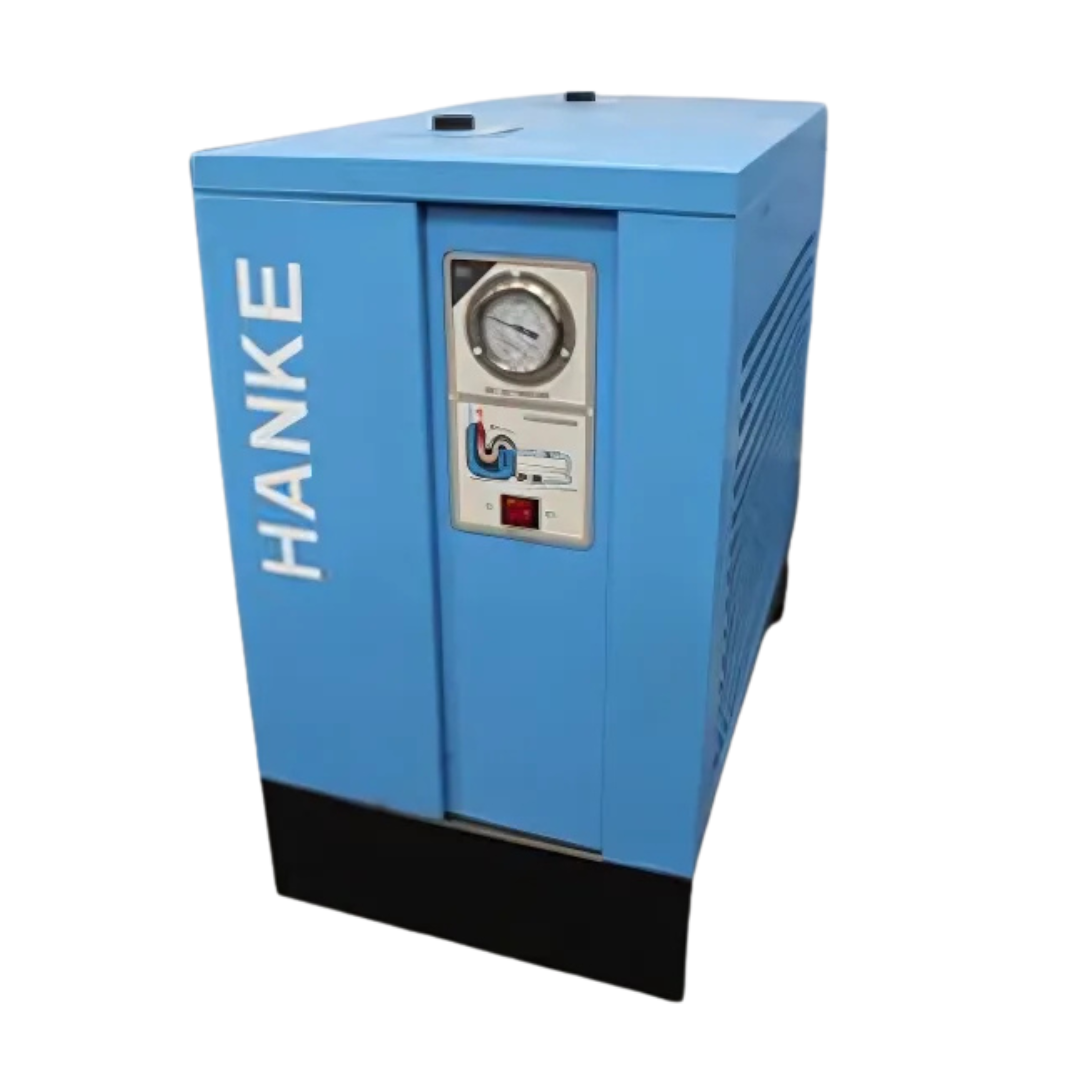

Heavy Duty Refrigerated Air Dryer 250CFM Reliable Moisture Control for Compressed Air Systems

Eliminate moisture from compressed air systems with the Heavy Duty Refrigerated Air Dryer 250CFM Reliable Moisture Control for Compressed Air Systems. Designed for industrial and commercial use, this powerful dryer ensures clean, dry air for optimal equipment performance. Whether used in automotive, manufacturing, or painting operations, it prevents water-related damage, corrosion, and inefficiencies.

Featuring energy-efficient refrigeration technology, this air dryer maintains a stable dew point, reducing maintenance costs while increasing compressed air system longevity. Built for heavy-duty applications, it guarantees continuous, high-performance moisture removal to protect tools and finished products.

Design Characteristics

• Unique three-in-one plate type heat exchanger design, compact structure, high heat transfer efficiency. Compare to traditional shell tube heat exchanger, unit heat transfer area enlarges 5 to 10 times.
• High strength aluminum alloy and stainless steel design which is small and light.
• Imported refrigerated valve, compressor is Panasonic.
• Economic auto drain.
• Sensitive and reliable instrument control components

Specification:

• Working Pressure: 1.6MPa
• Rated Capacity: 7 M3/min
• Refrigerant: R134a
• Max Inlet Temperature: 65°C
• Maximum Ambient Temperature: 35°C
• Pressure Dew Point: 3~10°C
• Voltage: 240V / 1Ph / 50Hz
• Dimension: 800*654*1132
• Net weight: 120KG
