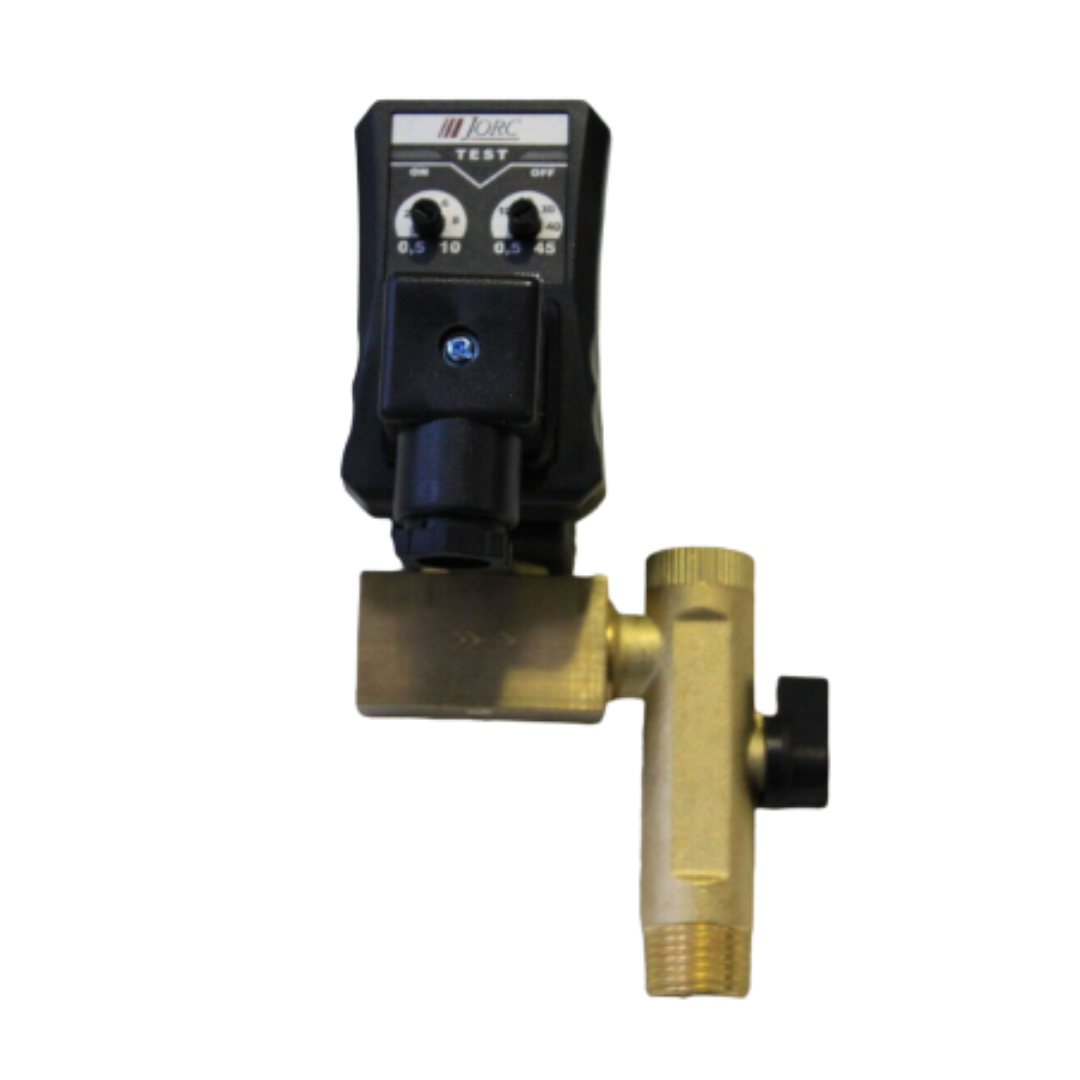

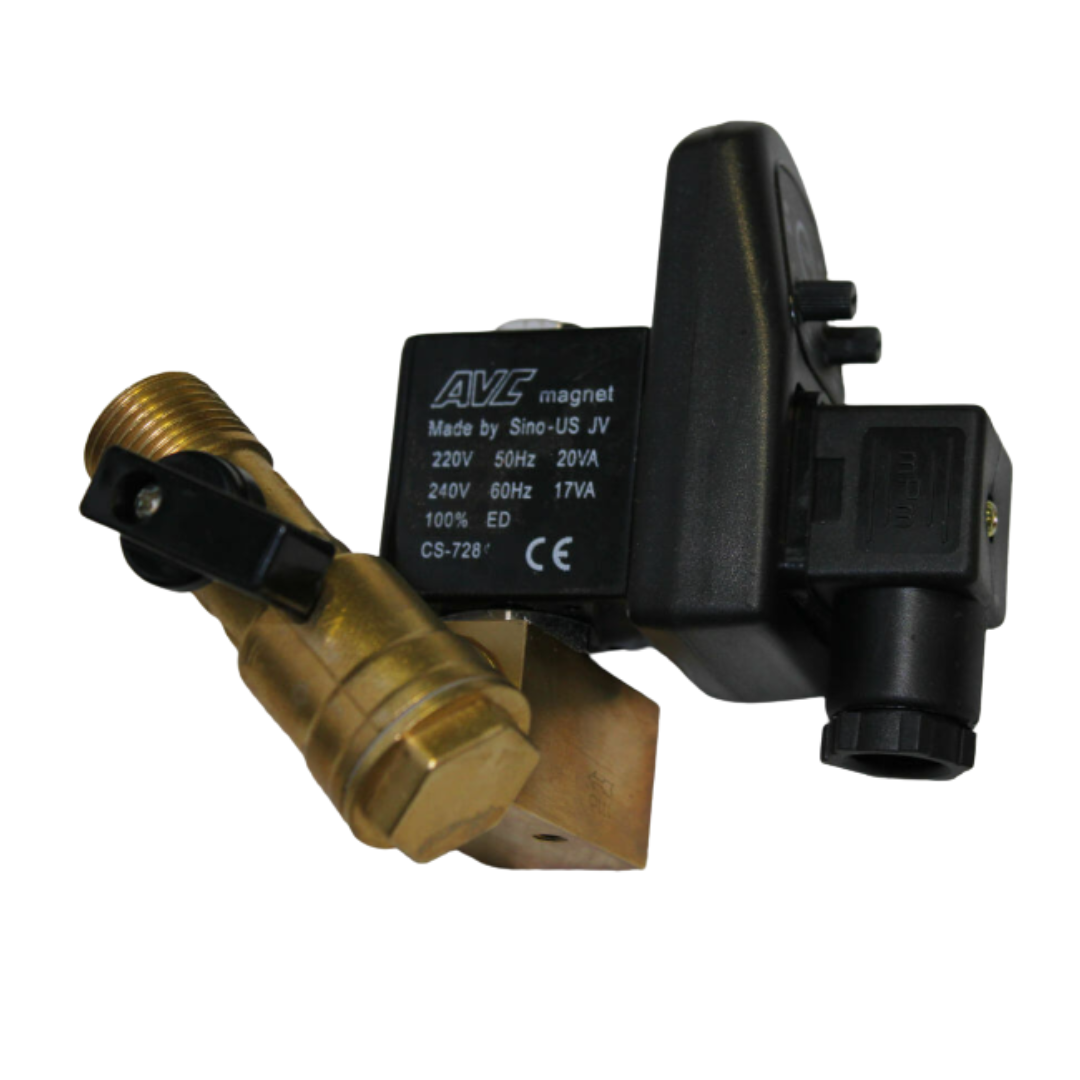

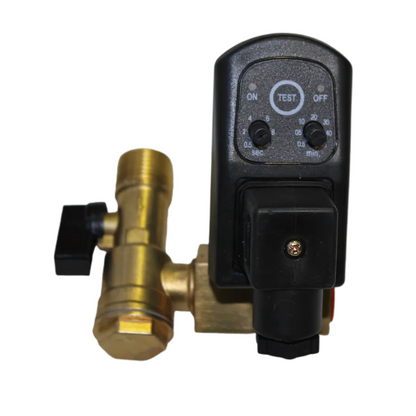

Electronic Drain Valve Auto Moisture Removal & Timer Control

Ensure peak performance of your air compressor with this Electronic Drain Valve, designed for automatic moisture removal and timer-controlled operation. This valve effectively eliminates excess water, preventing rust, corrosion, and system inefficiencies. Its user-friendly timer settings allow for precise drainage intervals, ensuring optimal air quality in air compressors, dryers, and industrial air systems.

Built for durability and reliability, this auto drain valve is easy to install and requires minimal maintenance, making it a must-have for industrial and workshop applications.

Specification:

• Time interval(OFF) 0.5~45 minute
• Discharge time(ON) 0.5~10 second
• The voltage of the power 24~240V  AC/DC  50/60HZ
• Power consumption closes state 0.6VA
• Ambient temperature ,   -20~+60
• Working way automatic circulation
• Boby material engineering plastics of fire-retardant ABS
• Indicator lamp LED it is open to point out the power/break
• Type 2/2 direct-action valve
• In/out adapter 1/2 or1/4 inner thread
• Max working pressure 1.6Mpa(4Mpa\8Mpa optional)
• Lowest/highest Ambient temperature 0~55ºC
• Max medium temperature 80ºC
• Valve boby forged brass Diamerter 5mm
