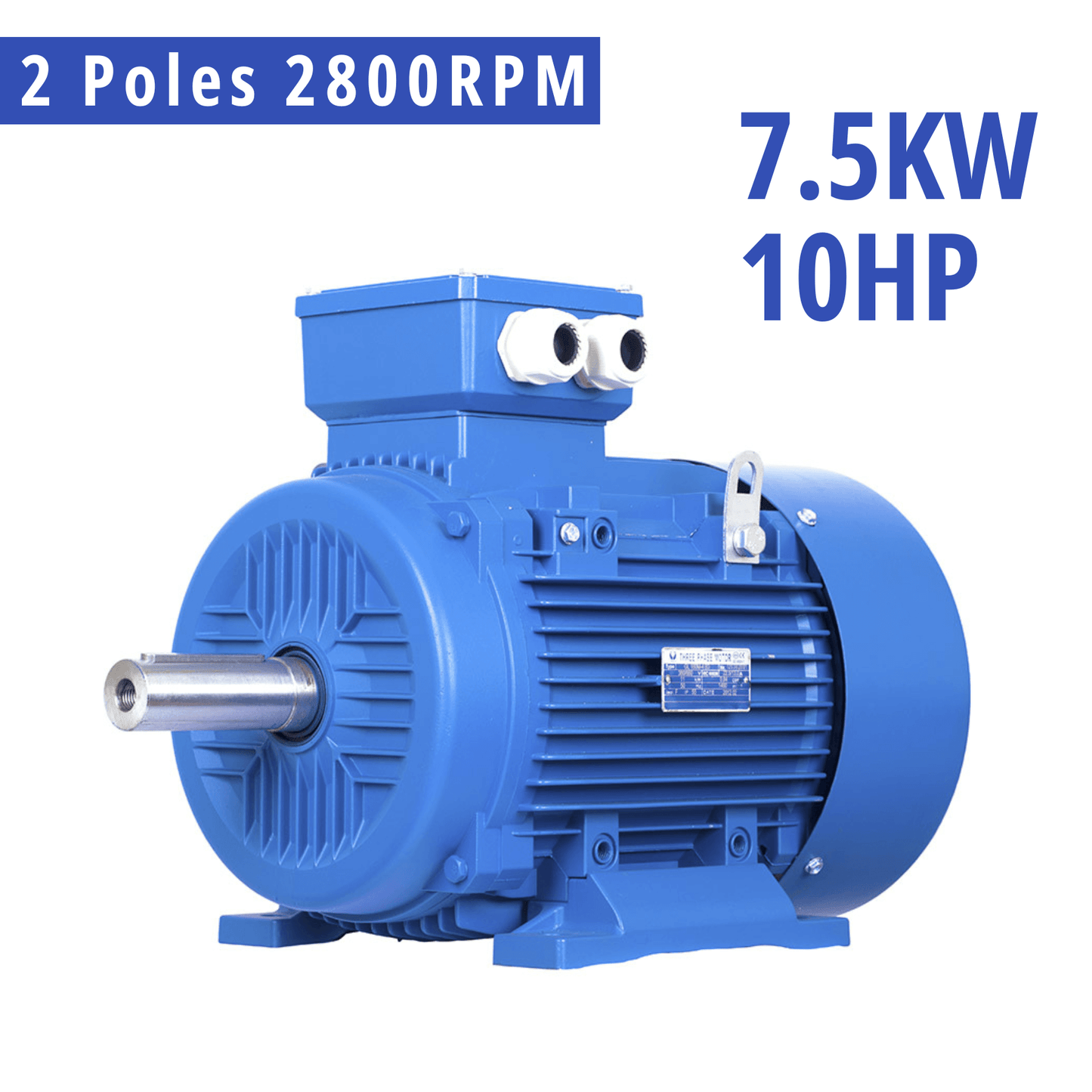

7.5kW 10HP 2800RPM 3-Phase Induction Motor

Enhance your industrial operations with this high-performance 7.5kW (10HP) 3-phase induction motor. Operating at 2800 RPM with a 2-pole configuration, it delivers efficient and reliable power for demanding applications. The motor features a robust 38mm shaft and supports dual voltage inputs of 240/415V, making it versatile for various setups. Ideal for compressors, pumps, conveyors, and other heavy-duty machinery, this motor is designed for durability and consistent performance.

Specification:

• Power: 7.5kw/10HP
• Three-phase: 240V/415V
• Maximum Amps draw: 14.5Amps
• Speed: 2 Pole ( 2800rpm )
• Shaft size: 38mm
• Light weight

Technical Parameters:

• Full Load Current at rated voltage (V)
  • 380V: 14.5
  • 400V: 13.8
  • 415V: 13.3
• Rated Power: 7.5KW
• Full load speed in revolutions per minute: 2910 r/min
• Efficiency: 88.1%
• Power Factor: 0.89 Cosφ
• Direct on line starting torque ration: 2.2
• Direct on line starting current ratio: 7.8
• Direct on line pull out torque ratio: 2.3
• Mean sound pressuer level @1m on no load: 79 LwdB(A)
• Weight: 70kg
• Rotor inertia Wk: 15.3
