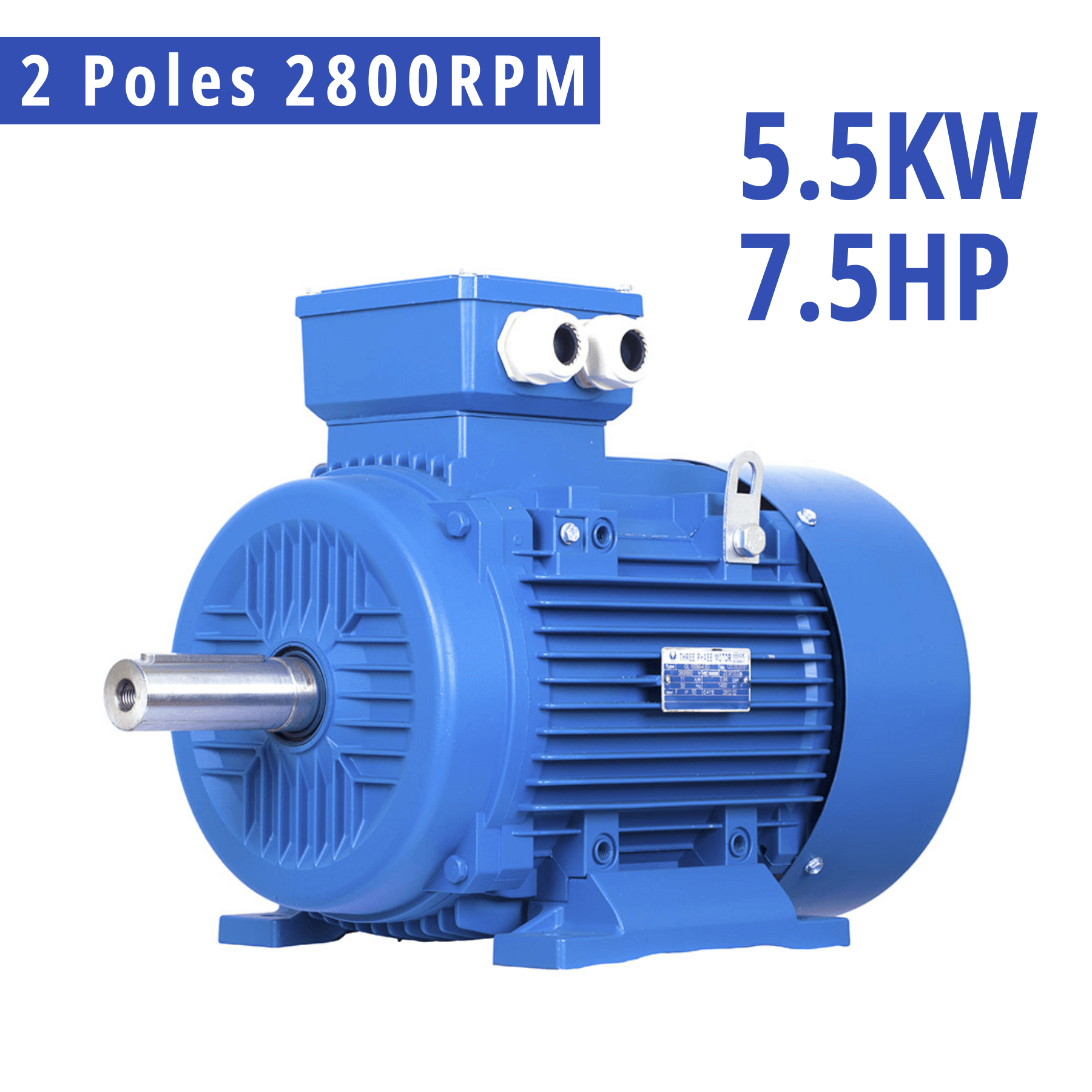

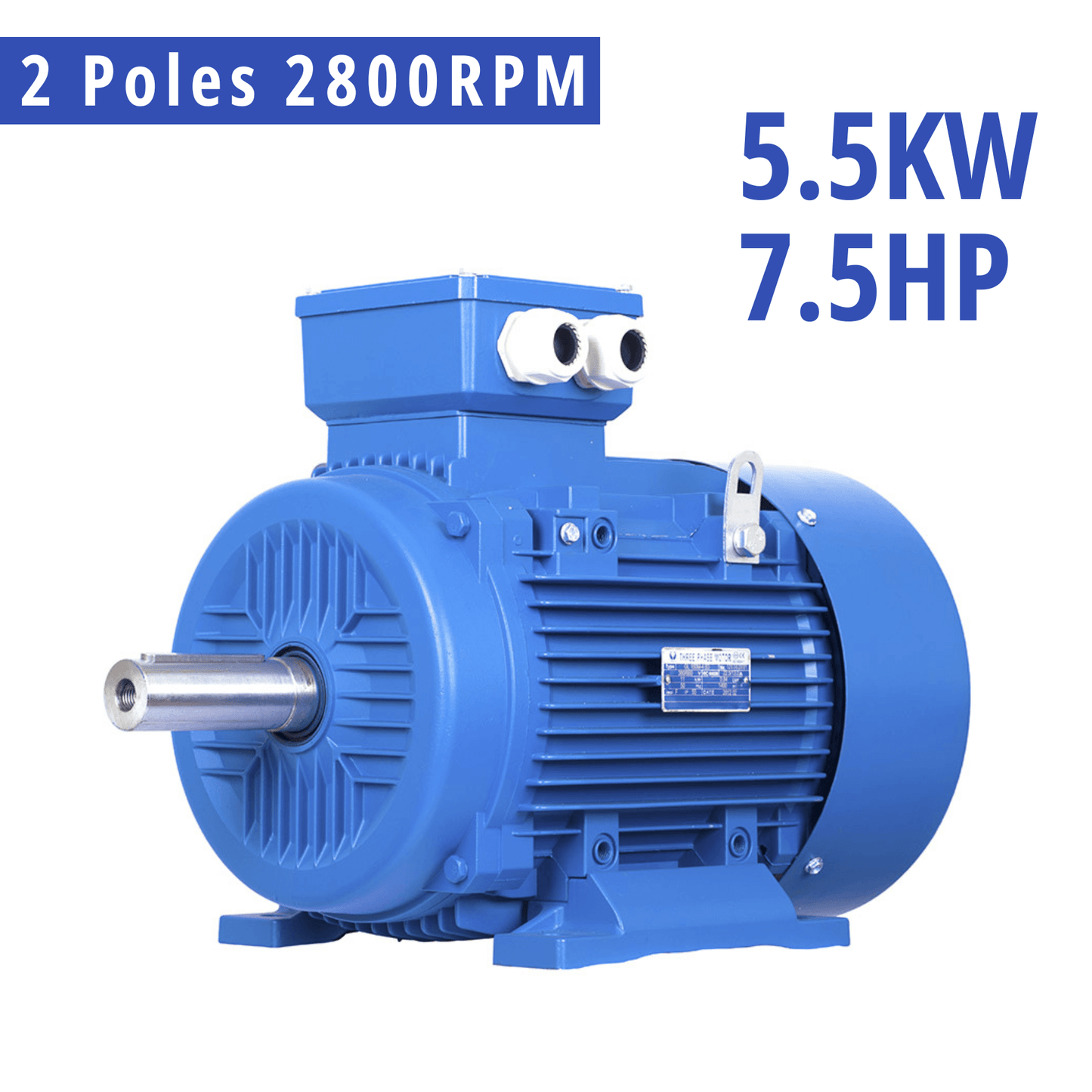

Boost your equipment’s performance with this reliable 5.5kW 7.5HP 3-Phase Induction Motor. Engineered for high efficiency and continuous operation, this motor runs at 2800RPM with a 2-pole design. Built with a strong 38mm shaft and dual voltage capability (240/415V), it’s ideal for a range of industrial applications such as pumps, compressors, fans, and conveyors. Durable and easy to maintain, this motor ensures long-term productivity and energy savings.
Specification:
Power: 5.5kw/7.5HP
Three-phase: 240V/415V
Maximum Amps draw: 10.9Amps
Speed: 2 Pole ( 2800rpm )
Shaft size: 38mm
Light weight
Technical Parameters:
Full Load Current at rated voltage (V)
380V: 10.9
400V: 10.4
415V: 10.0
Rated Power: 5.5KW
Full load speed in revolutions per minute: 2910 r/min
Efficiency: 87.0%
Power Factor: 0.88 Cosφ
Direct on line starting torque ration: 2.2
Direct on line starting current ratio: 8.2
Direct on line pull out torque ratio: 2.3
Mean sound pressuer level @1m on no load: 79 LwdB(A)
