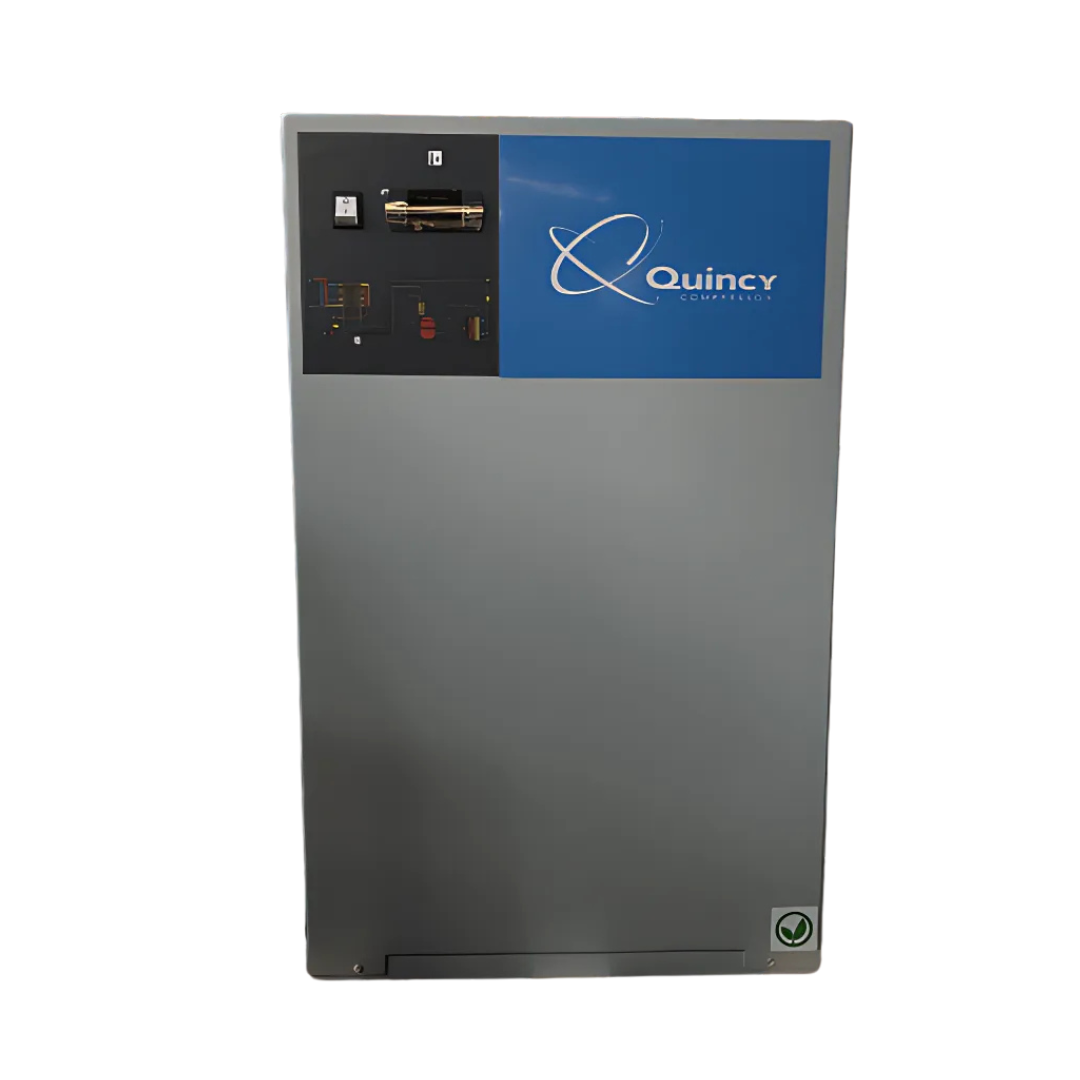

370CFM High Performance Refrigerated Air Dryer Moisture Removal for Industrial Applications

The High-Performance Refrigerated Air Dryer 370CFM is engineered to eliminate moisture, rust, and contamination from compressed air systems. Designed for industrial applications, spray painting, powder coating, CNC machining, and manufacturing, this air dryer delivers consistent, dry air output, extending the life and efficiency of your tools and equipment.

Using cutting-edge refrigeration technology, this air dryer effectively removes water vapor, maintaining a stable dew point to prevent condensation buildup. Its durable construction and energy-efficient design make it a valuable addition to any compressed air system.

Design Characteristics

• Unique three-in-one plate type heat exchanger design, compact structure, high heat transfer efficiency. Compare to traditional shell tube heat exchanger, unit heat transfer area enlarges 5 to 10 times.
• High strength aluminum alloy and stainless steel design which is small and light.
• Imported refrigerated valve, compressor is Panasonic.
• Economic auto drain.
• Sensitive and reliable instrument control components

Specification:

• Working Pressure: 0.7-1.3MPa
• Rated Capacity: 10.5 M3/min
• Refrigerant: R134a
• Max Inlet Temperature: 50°C
• Maximum Ambient Temperature: 35°C
• Pressure Dew Point: 3~10°C
• Voltage: 230V / 1Ph / 50Hz
• Dimension: 550*600*958
• Net weight: 75KG
