22kW 2 Pole 30HP 3-Phase Electric Induction Motor 2800RPM 415V 48mm Shaft

22kW 2 Pole 30HP 3-Phase Electric Induction Motor 2800RPM 415V 48mm Shaft

Regular price $2,489.00
Regular price Sale price $2,489.00
Sale Sold out

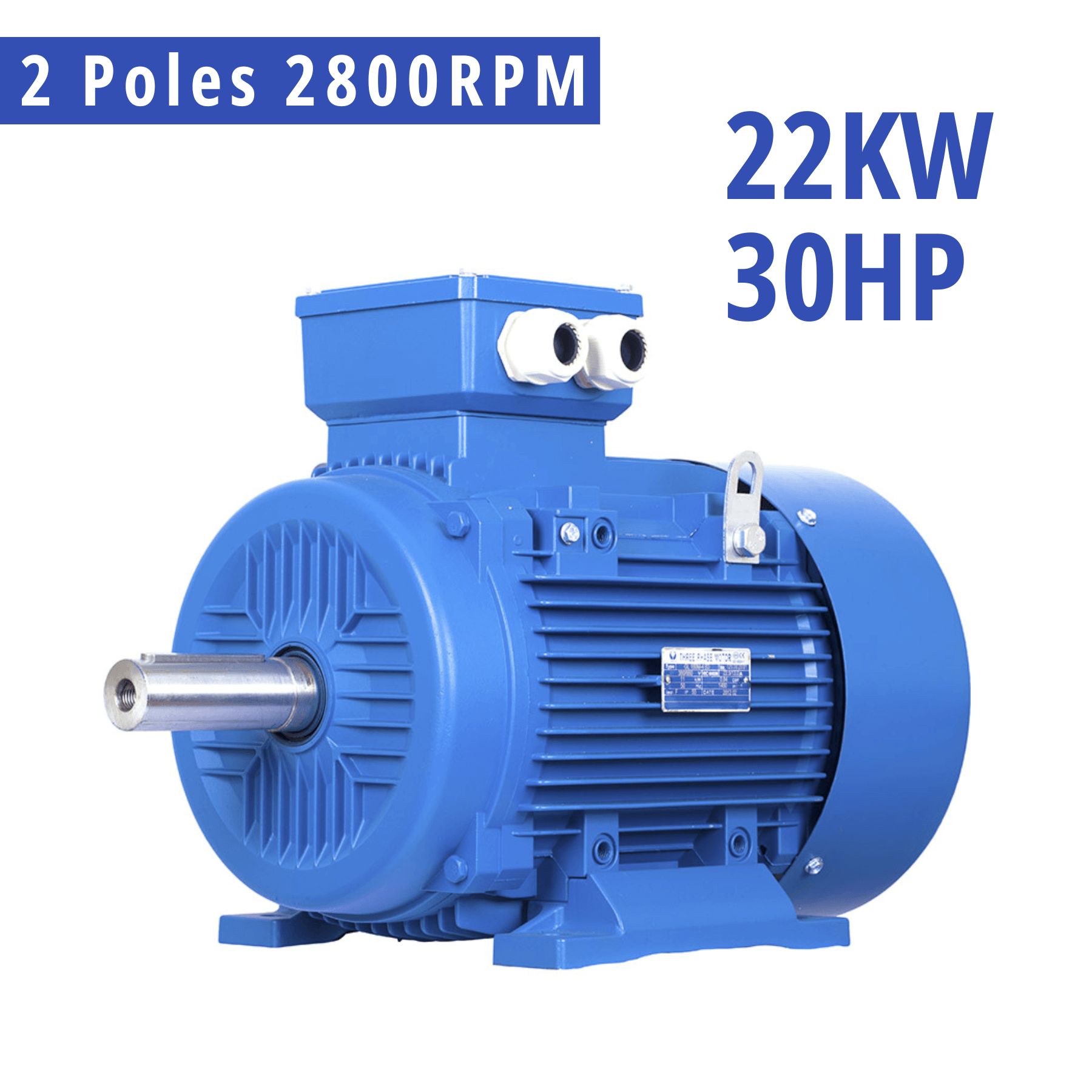

High-Efficiency 3-Phase Induction Motor – Built for Industrial Demands

This 22kW (30HP) 2-pole induction motor is designed for high-speed, continuous operation in industrial environments. Operating at 2800 RPM and 415V, it’s ideally suited for applications such as air compressors, pumps, fans, and conveyors.

Built with a robust 48mm shaft and a durable cast iron frame, this 3-phase motor ensures reliable performance, reduced vibration, and long service life even under heavy loads.

Specification:

  • Three-phase: 415v
  • Voltage: 415V/720V
  • Speed: 2 Pole (2800rpm)
  • Power: 22kw/30HP
  • Shaft size: 48mm
  • Maximum amperage draws:40.7A
  • Light weight
  • Aluminium alloy

Technical Parameters:

  • Output (kw): 22
  • Speed (r/min): 2950
  • Amps (A): 40.7
  • EFF. (%): 92.2
  • P.F. (Cosφ): 0.89
  • LRT (RLT): 2.2
  • LRA (RLA): 8.2
  • BDT (BDT): 2.3
  • Noise (LwdB(A)): 83
  • Voltage (V): 415
