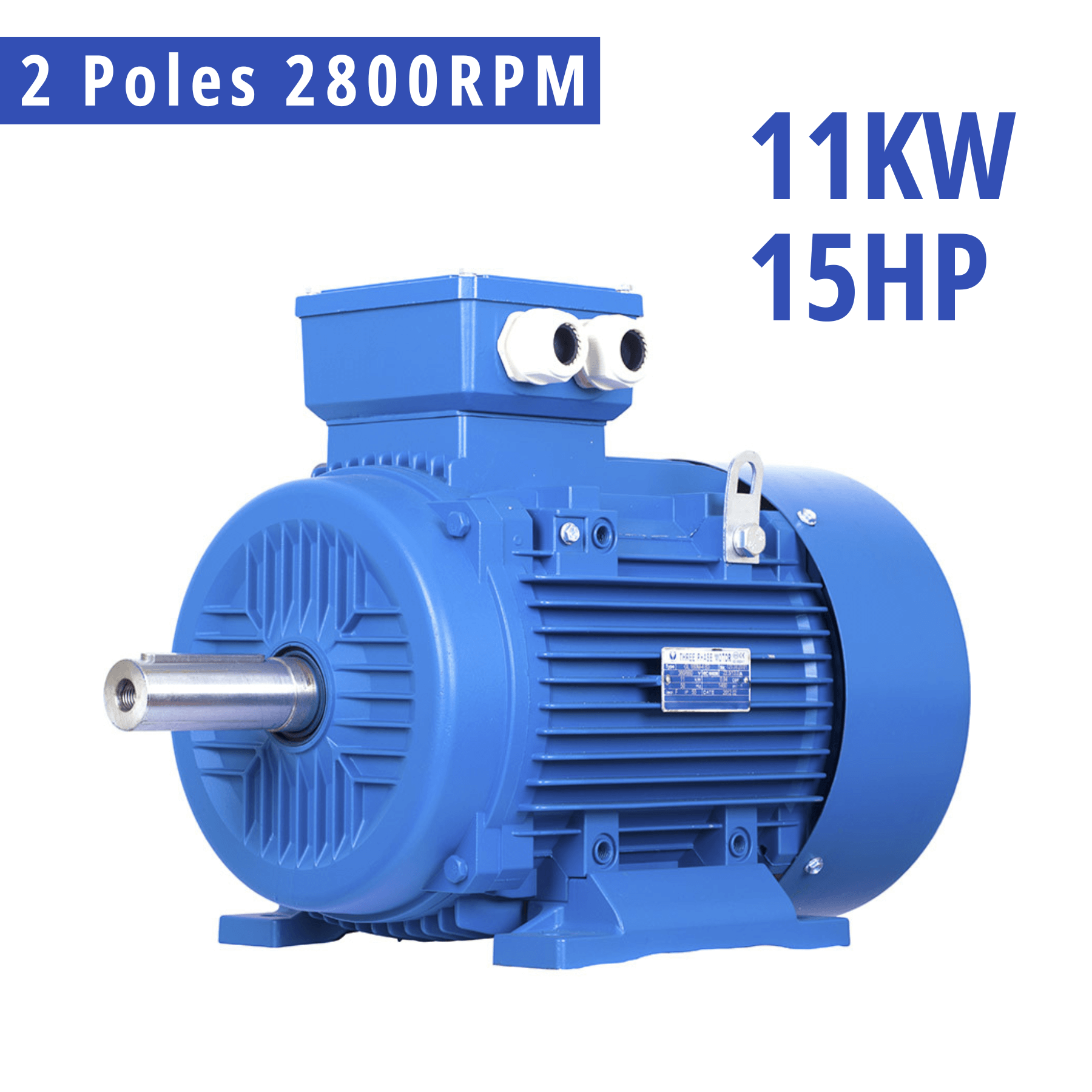

11kW 15HP 3-Phase Electric Motor 2 Pole 2800RPM 42mm Shaft 415V IE3

High-Efficiency 3-Phase Electric Motor – IE3 Rated for Superior Performance

This 11kW (15HP) 2-pole induction motor is a high-performance solution designed for industrial applications such as compressors and pumps. With a 2800 RPM speed, 42mm shaft, and 3-phase 415V operation, this motor offers optimal efficiency and reliability for heavy-duty tasks. It's also IE3-rated, ensuring superior energy efficiency for long-term cost savings and compliance with international standards.

Specification:

• Three-phase: 415v
• Voltage: 415V/720V
• Speed: 2 Pole (2800rpm)
• Power: 11kw/15HP
• Shaft size: 42mm
• Maximum amperage draws:20.8A
• Aluminium alloy

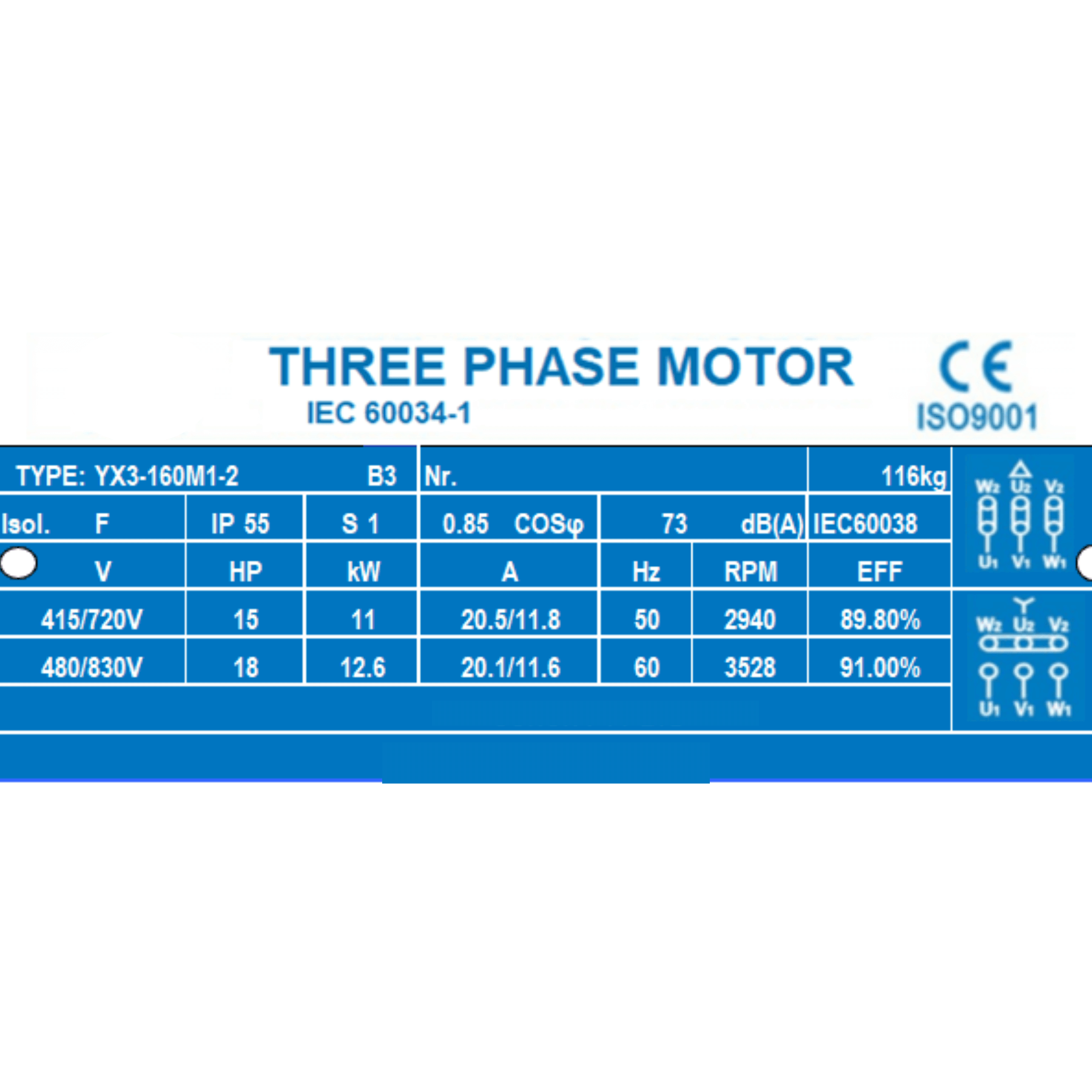

Technical Parameters:

• Output (kw): 11
• Speed (r/min): 2940
• Amps (A): 20.8
• EFF. (%): 90.5
• P.F. (Cosφ): 0.89
• LRT (RLT): 2.2
• LRA (RLA): 7.9
• BDT (BDT): 2.3
• Noise (LwdB(A)): 81
• Voltage (V): 415
